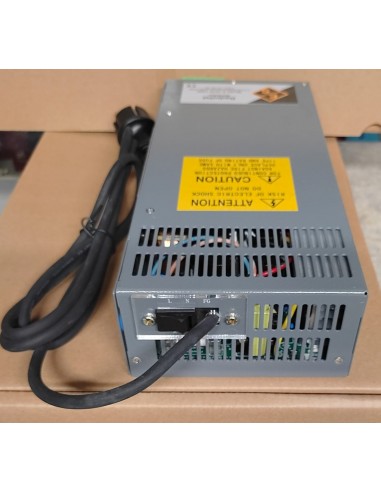

Professional Switching Power Supply 1000W 75A

E-SCN-1000_13.8V

New product

10 Items

$226.24

More info

FEATURES

- AC input range selected by switch

- ON/OFF switch

- 2mt flexible cable with shuko

- Assembled with high-quality components

- Very low noise

- Equipped with high-efficiency filters and EMC circuit

- Protections: Short circuit / Overload current and voltage / Over temp.

- High reliability/ Low ripple and low noise

- Built-in remote sense function

- Built-in remote ON-OFF control

- Built-in parallel operation function

- Adjustable output voltage by external control 1-5V  from (20~100%)

- Adjustable output voltage by internal trimmer  (12-14,5 Vdc)

- Forced air cooling by built-in DC fan

IMPORTANT

For safety reasons, we strongly suggest to connect the device to ground earth.

Model

E-SCN-1000

DC Output Voltage

13.8V

Intput Voltage Error

1%

Rated Output Current

75A

Output Current Range

0-75A

Ripple and Noise

240mVp-p

Voltage Adjustment Range

 5.0% typical adjustment by potentiometer

20~100% adjustment by 1~5VDC external control

Inlet Stability

0.5%

Tolerance Voltage

1%

DC Output Power

1000W

Efficiency

84,00%

AC Input Voltage range

90 ~ 130VAC / 180 ~ 260VAC selected by switch, 260 ~ 370VDC

Input Current

Fuse 10A/230VAC - Fuse 15A/115VAC

AC Inrush Current

Cold-Start Current: 60A / 230VAC

Leakage Current

3.5mA/240VAC

Overload Protection

110~135% rated output power,Current limiting, delay shut down o/p voltage, re-power on to recover

Over Voltage Protection

110 ~ 135% follow to output set up point, shut down o/p voltage, re-power on to recover

High Temperature

>100℃ / measure by heat sink, near transformer,Shut down o/p voltage, re-power on to recover

Temperature Coefficient

0.04% /℃ (0~50℃)

Start, Rise, Hold Time

800ms, 50ms, 16ms at full load

Vibration

10 ~ 200Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

Withstand Voltage

I/P-O/P, I/P-FG:1500VAC

Isolation Resistance

I/P-O/P, I/P-FG, 100M Ohms / 500VDC / 25 ℃/ 70% RH

Working Temperature, Humidity

-10℃~+60℃ (Refer to Output Derating Cutve), 20%~90%RH

Storage Temperature, Humidity

20℃~+85℃, 10%~95%RH

MTBF

120Khrs min. MIL-HDBK-217F (25℃ )

Dimension

291x132x68 mm

Weight

2.65 kgs

Special functions

DC voltage adj., Remote sensing, remote control, parallel operation (refer to terminal instruction manual)

Safety Standards

CE

EMC Standards

Meet FCC Part 15J Conduction class A
