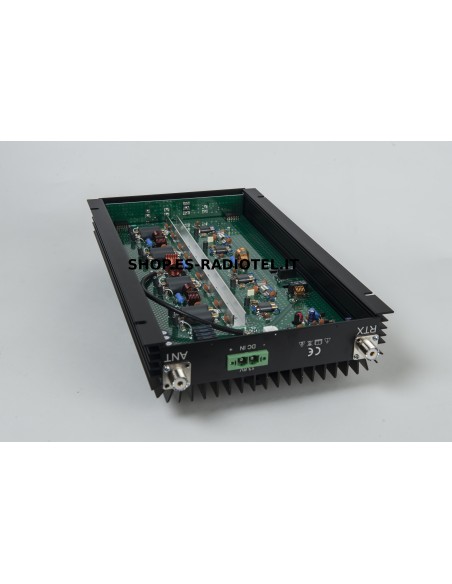

Linear Amplifier RM Italy KL503
Linear Amplifier RM Italy KL503
Linear Amplifier RM Italy KL503
Linear Amplifier RM Italy KL503
Linear Amplifier RM Italy KL503
Linear Amplifier RM Italy KL503
Linear Amplifier RM Italy KL503
Linear Amplifier RM Italy KL503

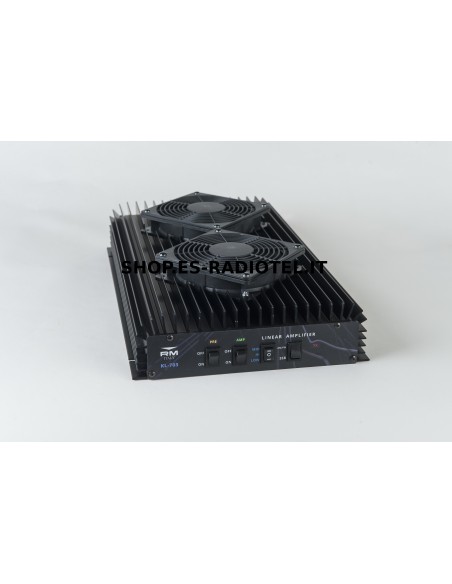

Linear Amplifier RM Italy KL703

Official service center for RM Italy. Direct warranty management.

Product coming from the latest batch.

KL703
Last items in stock
€495.00 €550.00 -€55.00



New MOSFET Linear Amplifier with two large fans, antenna preamplifier,

electronic switch and inversion polarity protection.



Specifications

Frequency: HF (10m Amateur HF Band)

Supply: 12–14V

Max I/P Current: 50A

Power Supply: 13.8VDC+/- 1V 60A

Input RF Power: 1-35W max

Transistor: 16x RM 3 MOSFET

Output RF Power: 500W max

Maximum bypass power (Amplifier off): 50W max

Mode: AM-FM-SSB-CW-DATA, etc... (All narrowband modes)

Output power levels: 3

Antenna preamplifier: 26 dB

Input VSWR: 1.1—1.5:1

Output VSWR Maximum: 2.5:1

Harmonic Output: >-50dBc 25-30MHz

Input Fuse (Internal): 4x15A

Size: 240 x 70 x 450 mm

Weight: 4.2 Kg
