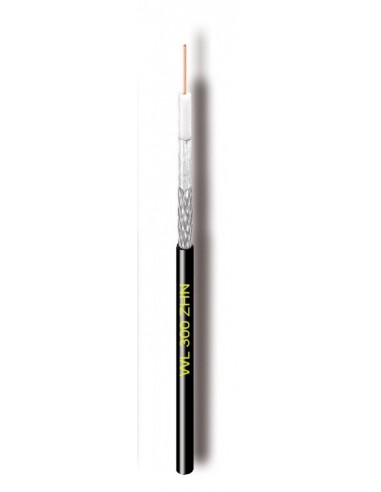

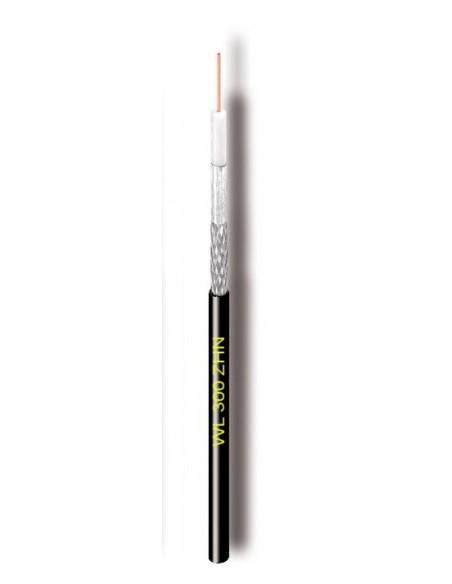

COAXIAL CABLE 50 Ohm WIRELESS Cavel WL300ZHN Flame retardant 100mt
High quality product completely made in Italy.
| CONSTRUCTION DATA | ||
| Inner Conductor | Ø mm | 1,80 |
| material | Cu | |
| Dielectric | Ø mm | 4,80 |
| material | PEG/PE | |
| Film Foil Laminate | material | APAS |
| Braid | material | CuSn |
| Braid Optical Coverage | % | 84 |
| Diameter over Braid | Ø mm | 5,57 |
| Outer Sheath | Ø mm | 7,6 |
| material | LSZH | |
| PHYSICAL DATA | ||
| Copper Content | kg/km | 43,9 |
| Cable Weight | kg/km | 83,8 |
| Min bending radius x 1/n | mm | 75 |
| Max.Tensile Strength | N | 540 |
| ELECTRICAL DATA | ||
| Impedance | Ohm | 50±2 |
| Capacitance | pF/m | 78 |
| Velocity Ratio | % | 86 |
| Attenuation (at 20°C ) | ||
| at 50 MHz | dB/100m | 4,1 |
| at 150 MHz | dB/100m | 7,0 |
| at 220 MHz | dB/100m | 8,6 |
| at 450 MHz | dB/100m | 12,8 |
| at 900 MHz | dB/100m | 18,6 |
| at 1500 MHz | dB/100m | 24,5 |
| at 1800 MHz | dB/100m | 27,0 |
| at 2000 MHz | dB/100m | 28,6 |
| at 2500 MHz | dB/100m | 32,5 |
| at 5800 MHz | dB/100m | 50,0 |
| Structural return loss (SRL) | ||
| at 5 - 470 MHz | dB | >30 |
| at 470 - 1000 MHz | dB | >28 |
| at 1000 - 2000 MHz | dB | >26 |
| at 2000 - 3000 MHz | dB | >22 |
| Screening Attenuation (SA) | ||
| at . | dB | >90 |
| DC Conductor Resistance inner/outer | Ohm/km | 7,0 / 7,3 |
| Loop resistance | Ohm/km | 14,3 |
| Sheat Insulation voltage (spark test) | kV | 5,0 |
| Maximum current (Ieff) | A | 18 |
