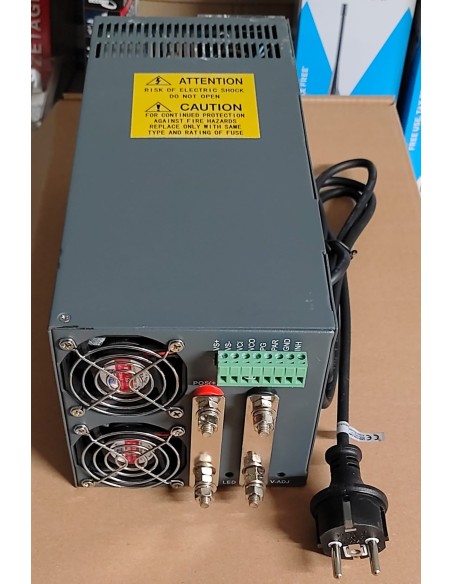

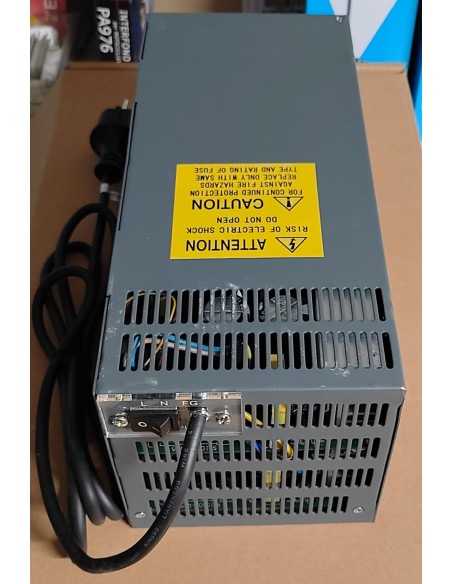

FEATURES
- AC input range selected by switch
- ON/OFF switch
- 2mt flexible cable with shuko
- Assembled with high-quality components
- Very low noise
- Equipped with high-efficiency filters and EMC circuit
- Protections: Short circuit / Overload current and voltage / Over temp.
- High reliability/ Low ripple and low noise
- Built-in remote sense function
- Built-in remote ON-OFF control
- Built-in parallel operation function
- Adjustable output voltage by external control 1-5V from (20~100%)
- Adjustable output voltage by internal trimmer (24.5 -29.9 Vdc)
- Forced air cooling by built-in DC fan
IMPORTANT
In order to reduce RFI (Radio Frequency Interference) and for safety reasons, we strongly suggest to connect the device to ground earth.
-
-
|
Model
|
E-SCN-1500
|
|
|
|
|
DC Output Voltage
|
24÷28 Vdc
|
|
Intput Voltage Error
|
1%
|
|
Rated Output Current
|
70A
|
|
Output Current Range
|
0-70A
|
|
Ripple and Noise
|
240mVp-p
|
|
Voltage Adjustment Range
|
5.0% typical adjustment by potentiometer
20~100% adjustment by 1~5VDC external control
|
|
Inlet Stability
|
0.5%
|
|
Tolerance Voltage
|
1%
|
|
DC Output Power
|
1500W
|
|
Efficiency
|
84,00%
|
|
AC Input Voltage range
|
90 ~ 130VAC / 180 ~ 260VAC selected by switch, 260 ~ 370VDC
|
|
Input Current
|
Fuse 10A/230VAC - Fuse 15A/115VAC
|
|
AC Inrush Current
|
Cold-Start Current: 60A / 230VAC
|
|
Leakage Current
|
3.5mA/240VAC
|
|
Overload Protection
|
110~135% rated output power,Current limiting, delay shut down o/p voltage, re-power on to recover
|
|
Over Voltage Protection
|
110 ~ 135% follow to output set up point, shut down o/p voltage, re-power on to recover
|
|
High Temperature
|
>100℃ / measure by heat sink, near transformer,Shut down o/p voltage, re-power on to recover
|
|
Temperature Coefficient
|
0.04% /℃ (0~50℃)
|
|
Start, Rise, Hold Time
|
800ms, 50ms, 16ms at full load
|
|
Vibration
|
10 ~ 200Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
|
|
Withstand Voltage
|
I/P-O/P, I/P-FG:1500VAC
|
|
Isolation Resistance
|
I/P-O/P, I/P-FG, 100M Ohms / 500VDC / 25 ℃/ 70% RH
|
|
Working Temperature, Humidity
|
-10℃~+60℃ (Refer to Output Derating Cutve), 20%~90%RH
|
|
Storage Temperature, Humidity
|
20℃~+85℃, 10%~95%RH
|
|
MTBF
|
120Khrs min. MIL-HDBK-217F (25℃ )
|
|
Dimension
|
291x132x13 mm
|
|
Weight
|
5 kgs
|
|
Special functions
|
DC voltage adj., Remote sensing, remote control, parallel operation (refer to terminal instruction manual)
|
|
Safety Standards
|
CE
|
|
EMC Standards
|
Meet FCC Part 15J Conduction class A
|
