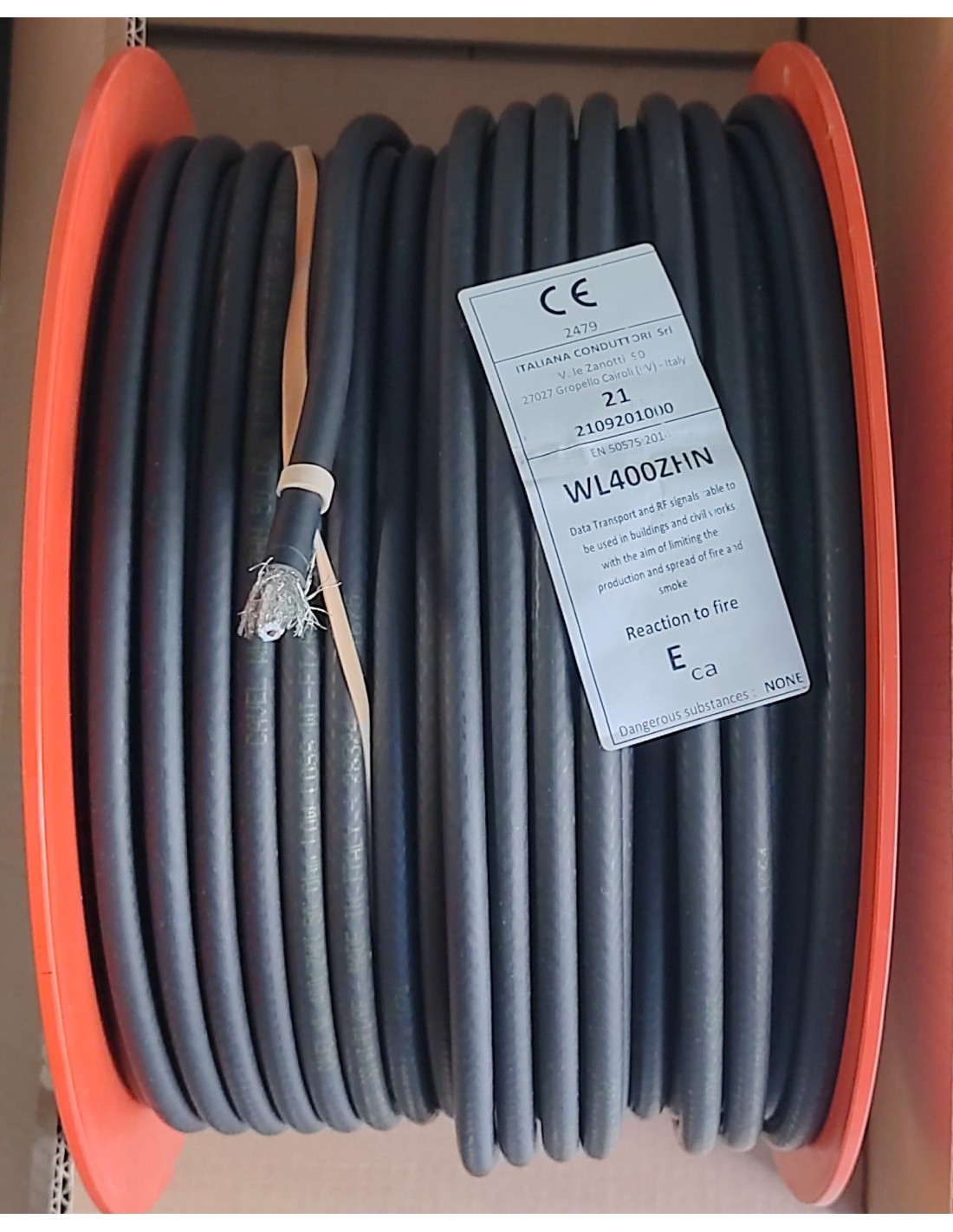

| Class CPR acc. to UE 305/2011 (DoP) | Eca | |
| Availability | on demand | |
| Application | Indoor + Outdoor Installation | |
| acc. to Standard | CEI-UNEL 36762 | |
| CONSTRUCTION DATA | ||
| Inner Conductor | Ø mm | 2,70 |
| material | Cu | |
| Dielectric | Ø mm | 7,20 |
| material | PEG | |
| Film Foil Laminate | material | APAS |
| Braid | material | CuSn |
| Braid Optical Coverage | % | 82 |
| Diameter over Braid | Ø mm | 7,97 |
| Outer Sheath | Ø mm | 10,3 |
| material | LSZH | |
| PHYSICAL DATA | ||
| Copper Content | kg/km | 80,4 |
| Cable Weight | kg/km | 148,8 |
| Min bending radius x 1/n | mm | 52 / 103 |
| Max.Tensile Strength | N | 720 |
| ELECTRICAL DATA | ||
| Impedance | Ohm | 50±2 |
| Capacitance | pF/m | 78 |
| Velocity Ratio | % | 86 |
| Attenuation (at 20°C ) | ||
| at 50 MHz | dB/100m | 2,8 |
| at 150 MHz | dB/100m | 5,0 |
| at 220 MHz | dB/100m | 6,0 |
| at 450 MHz | dB/100m | 8,7 |
| at 900 MHz | dB/100m | 12,5 |
| at 1500 MHz | dB/100m | 16,6 |
| at 1800 MHz | dB/100m | 18,2 |
| at 2000 MHz | dB/100m | 18,6 |
| at 2500 MHz | dB/100m | 22,5 |
| at 3000 MHz | dB/100m | 24,7 |
| at 4000 MHz | dB/100m | 28,4 |
| at 4800 MHz | dB/100m | 31,0 |
| at 5800 MHz | dB/100m | 37,0 |
| Structural return loss (SRL) | ||
| at 5 - 470 MHz | dB | 30 |
| at 470 - 1000 MHz | dB | 28 |
| at 1000 - 2000 MHz | dB | 26 |
| Screening Attenuation (SA) | ||
| at 30 - 1000 MHz | dB | >90 |
| DC Conductor Resistance inner/outer | Ohm/km | 3,4 / 6,0 |
| Loop resistance | Ohm/km | 9,4 |
| Sheat Insulation voltage (spark test) | kV | 8,0 |
| Maximum current (Ieff) | A | 25 |
