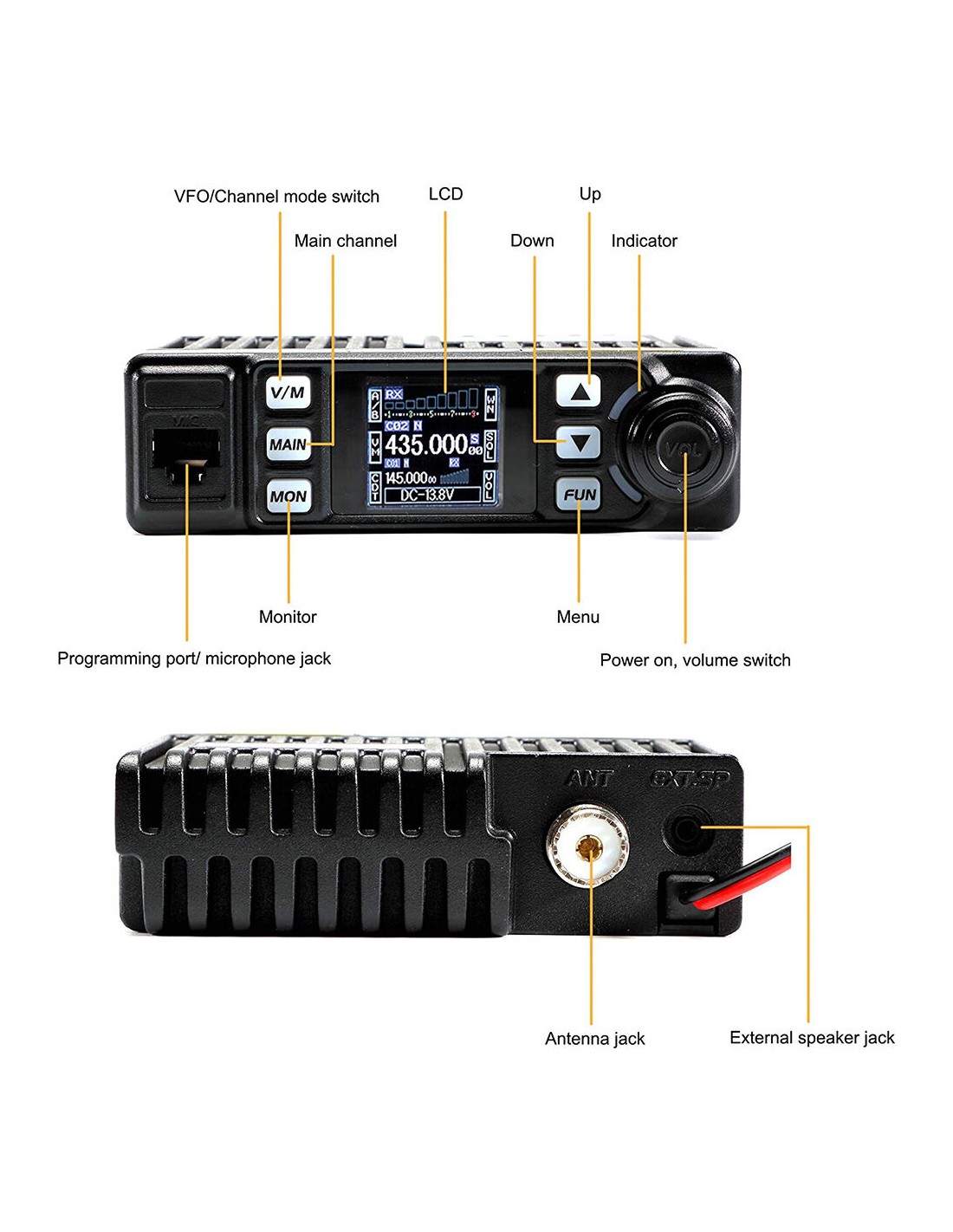

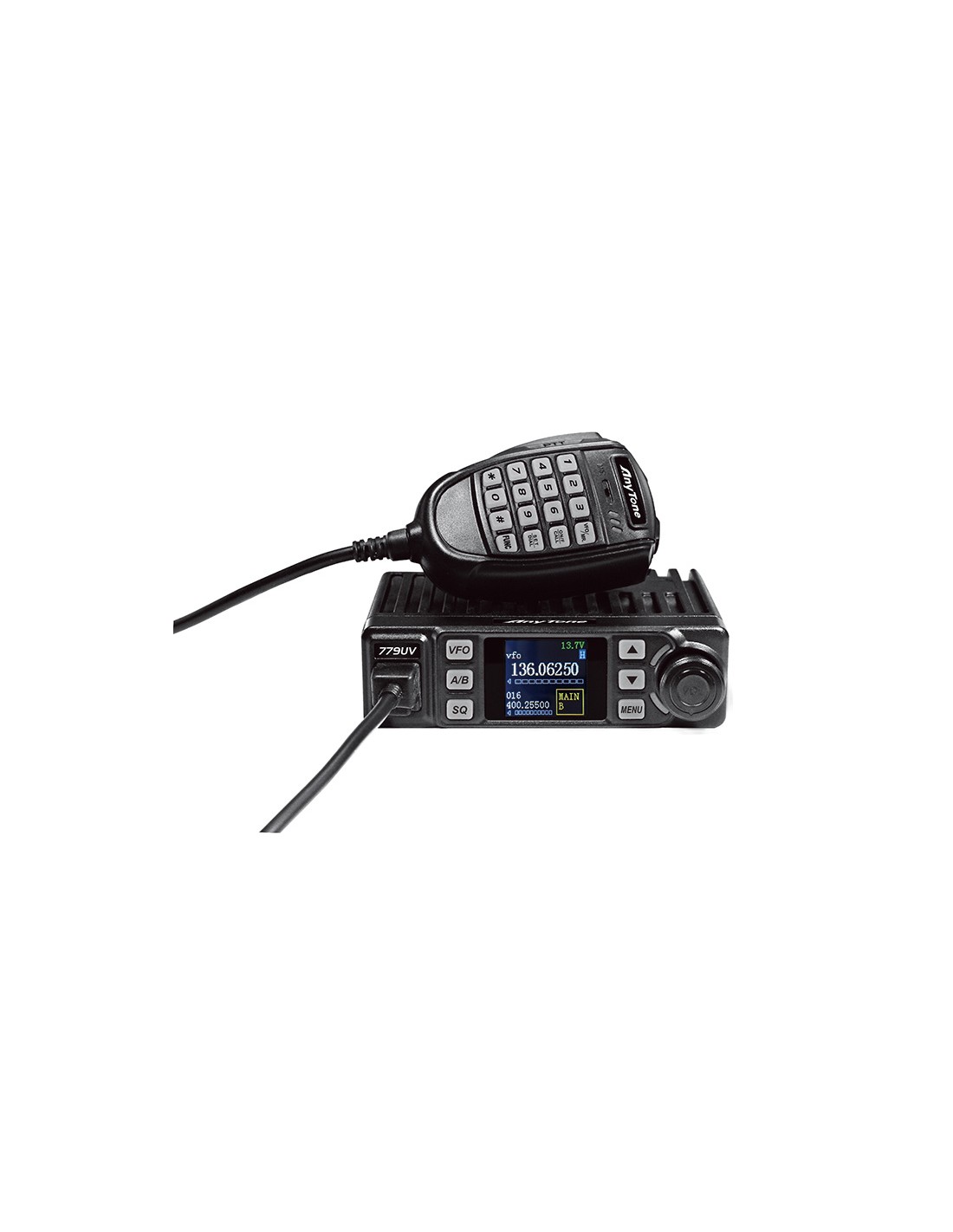

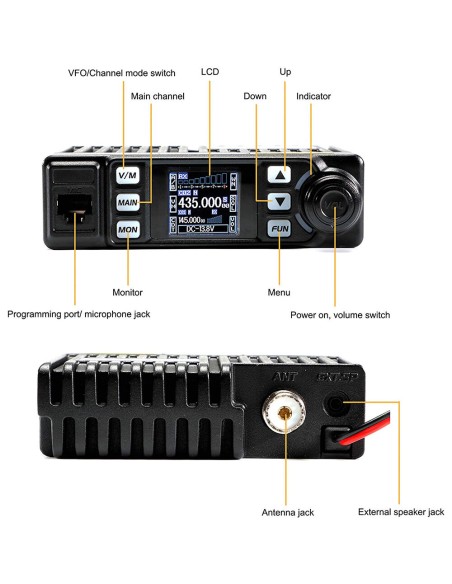

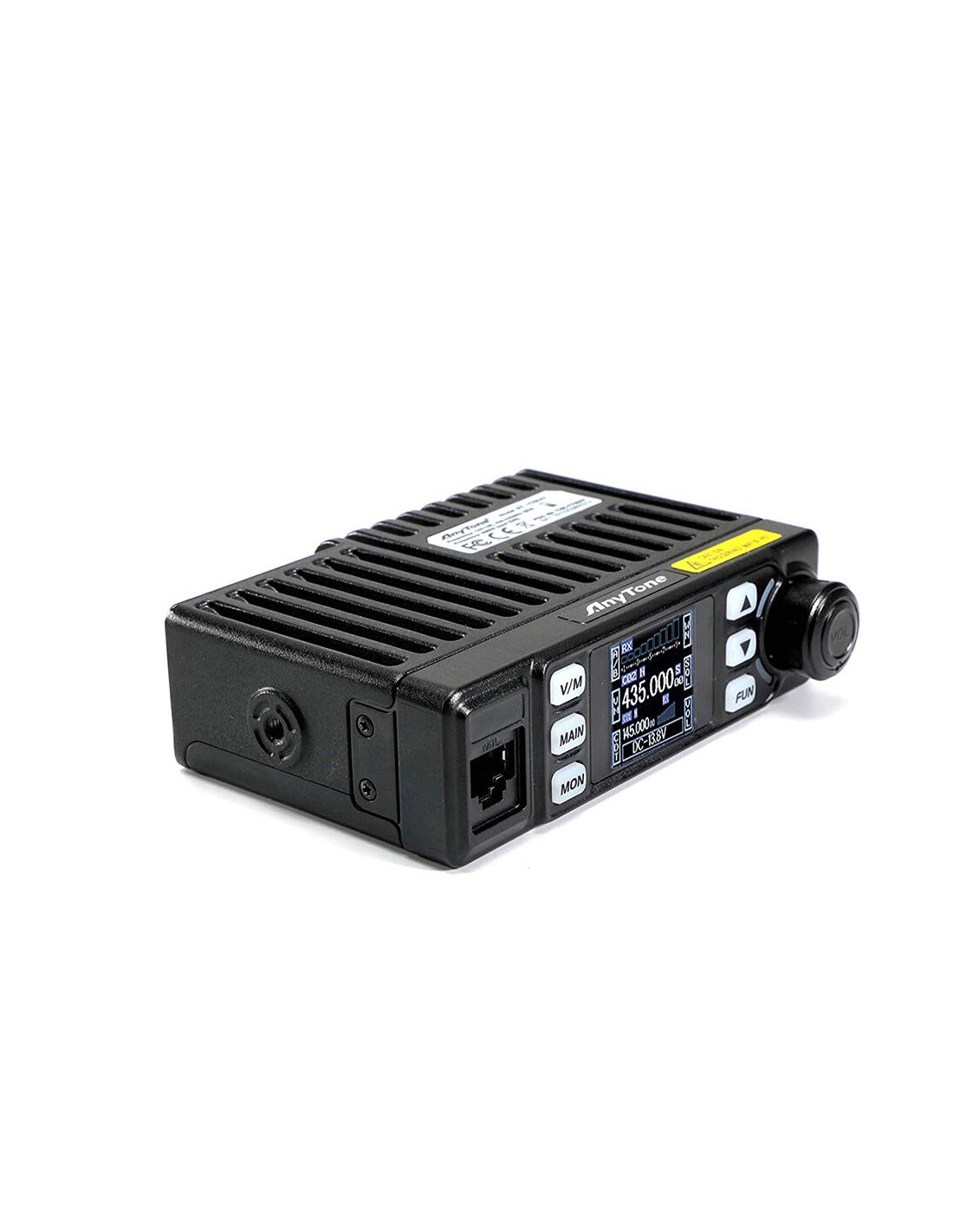

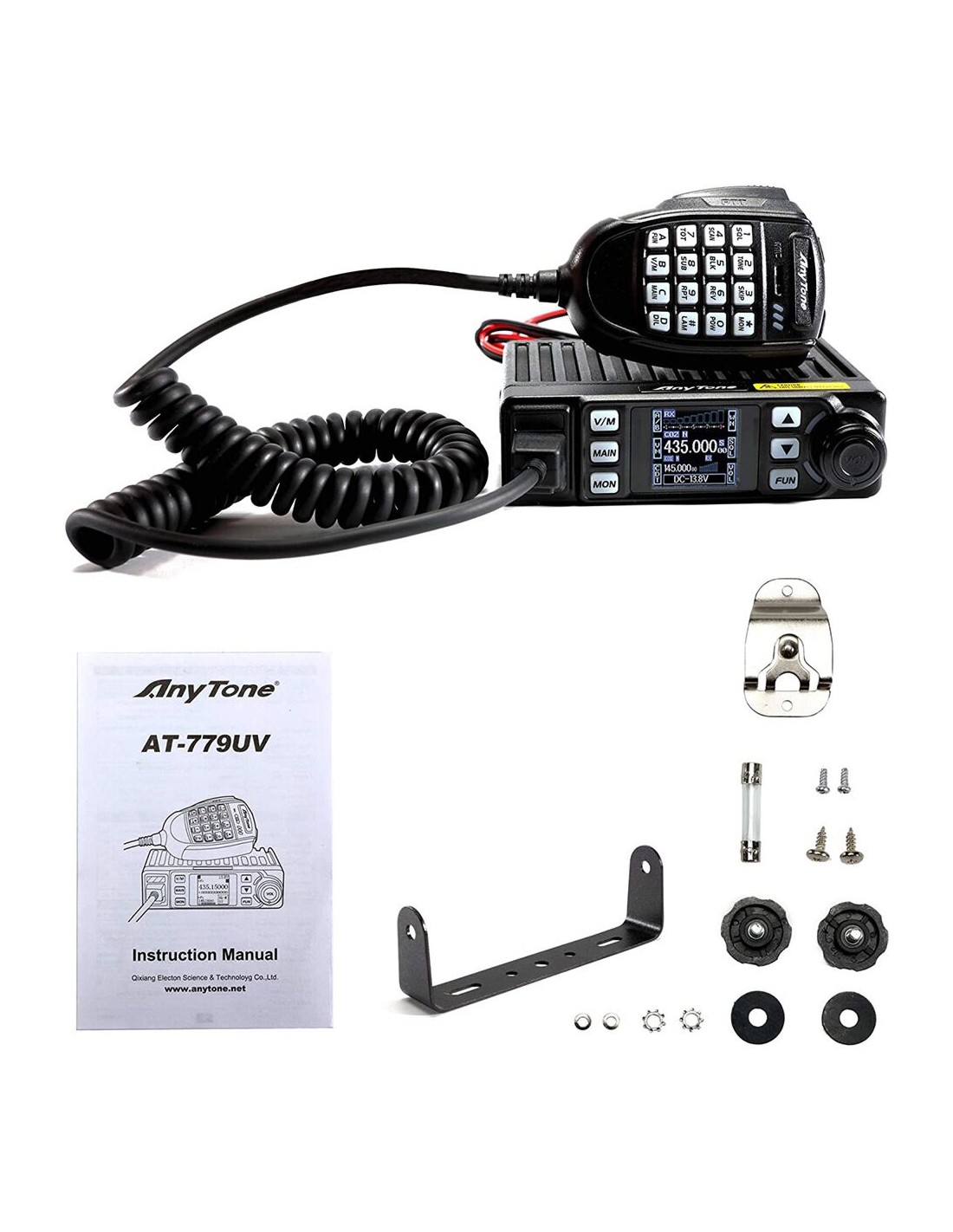

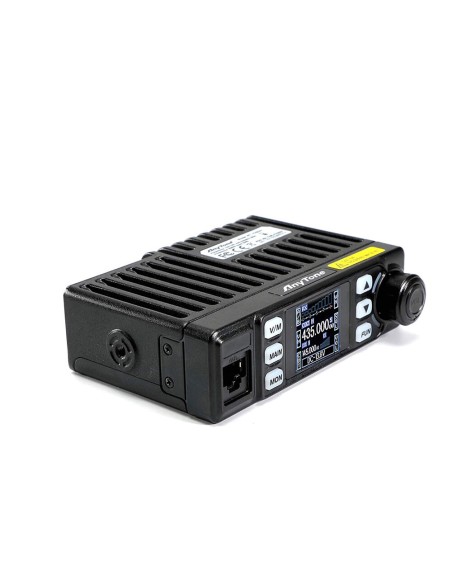

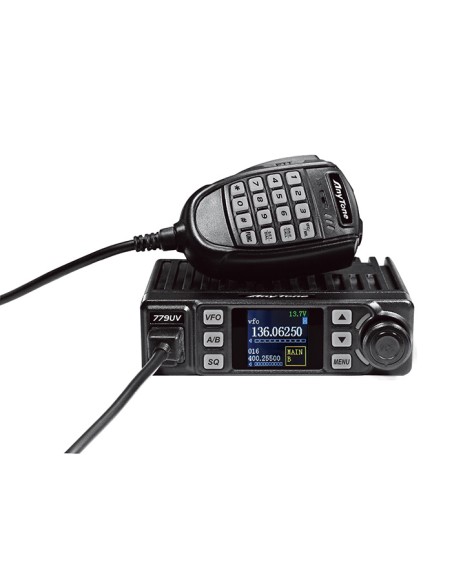

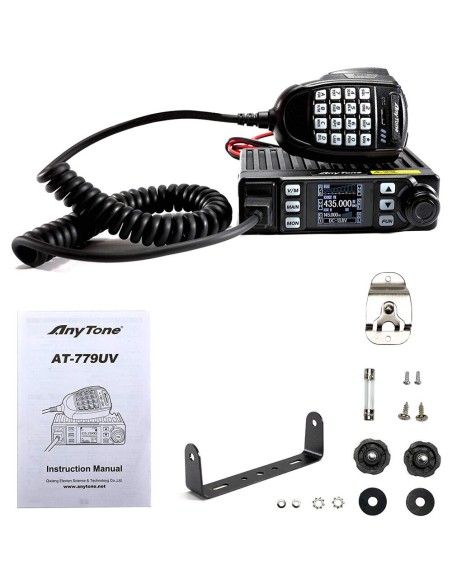

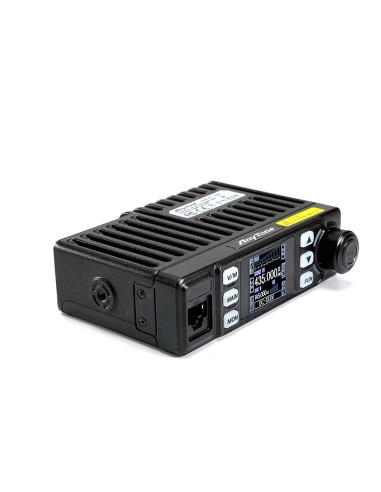

Anytone AT-779UV dual band 144-146MHz / 430-440Mhz radio station VHF / UHF PNI
AT-779UV Mobile Radio has nice housing,stoutness & stability,advanced and reliable,functions,perfect & valuable,This amateur mobile radio especially designs for drvers and it pursues philosophy of innovation and practicality.More functions as follows:
● Adopt superior quality material,better technology and high quality radiator to ensure stable and durable operation;
● 1.44 Inch TFT display;
● Amateur mode and professional mode for different operation requirement;
● CTCSS,DCS,DTMF,2Tone,5Tone setting for each single channel;
● 11 groups fixed scrambler code plus self define scrambler code;
● LCD brightness control;

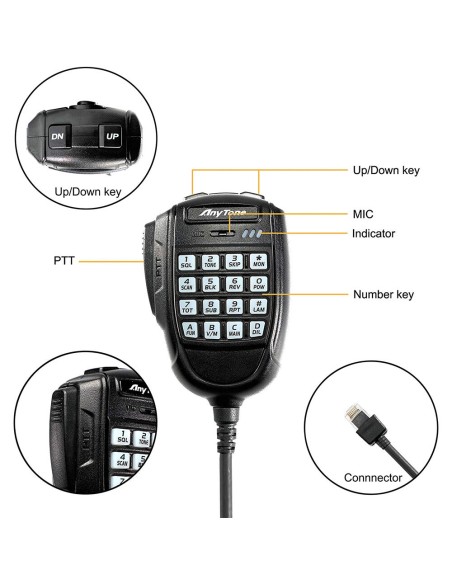

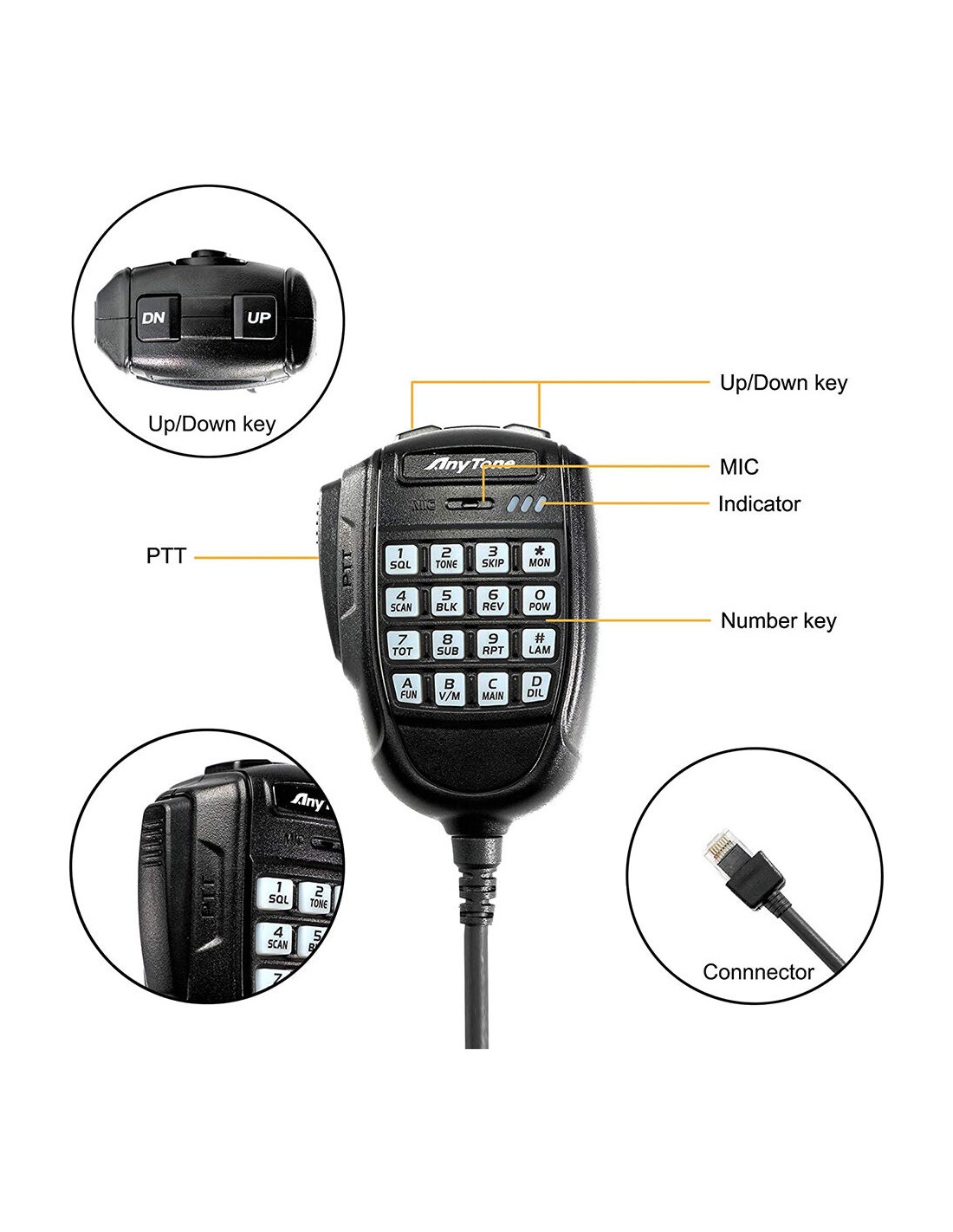

● Main unit and microphone key lock function;
● Compander function;
● Tone Pulse frequency;
| General | Transmitting Part | Receiving Part | |||||
| Frequency Range | VHF:136-174MHz UHF:400~490MHz |
Wide band | Narrow band | Wide band | Narrow band | ||
| Number of Channels | 199 Channels | Power Output | 25W / 10W / 5W | Sensitivity (12dBm SINDA) | ≤0.25μV | ≤0.35μV | |
| Channel Spacing | 25K (Wide Band) 12.5K (Narrow band) |
Modulation | 16KΦF3E | 11KΦF3E | Adjacent Channel Selectivity | ≥60dB | ≥60dB |
| Phase-locked Step | 2.5K,5K,6.25K,10K,12.5K, 20K,25K,30K,50K | Adjacent Channel Power | ≥70dB | ≥60dB | Intermodulation | ≥60dB | ≥60dB |

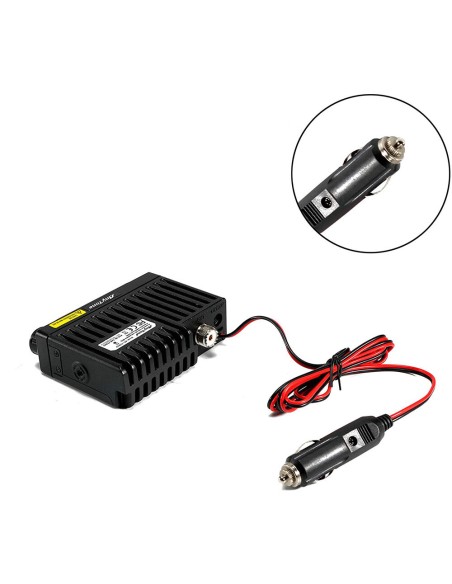

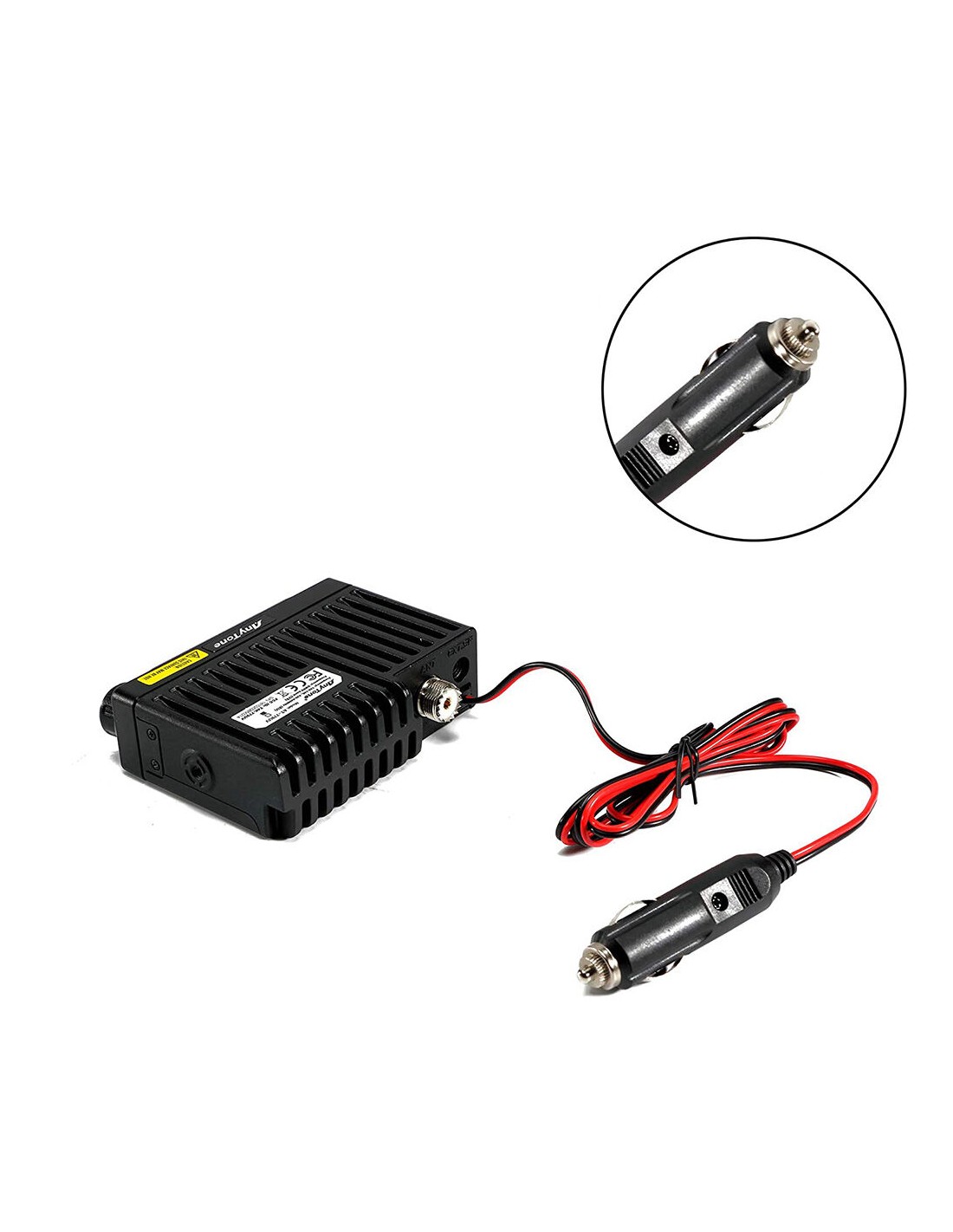

| Operating Voltage | 13.8V DC ±15% | Hum & Noise | ≥40dB | ≥36dB | Spurious response | ≥60dB | ≥60dB |
| Squelch | Carrier/CTCSS/DCS | Spurious Emission | ≥60dB | ≥60dB | Audio Response | +1~-3dB (0.3~3KHz) | +1~-3dB (0.3~3KHz) |
| Frequency Stability | ±2.5ppm | Audio Response | +1~-3dB (0.3~3KHz) | +1~-3dB (0.3~3KHz) | Hum & Noise | ≥45dB | ≥40dB |
| Operating Temperature | -20℃~+60℃ | Audio Distortion | ≤5% | Audio distortion | ≤5% | ||

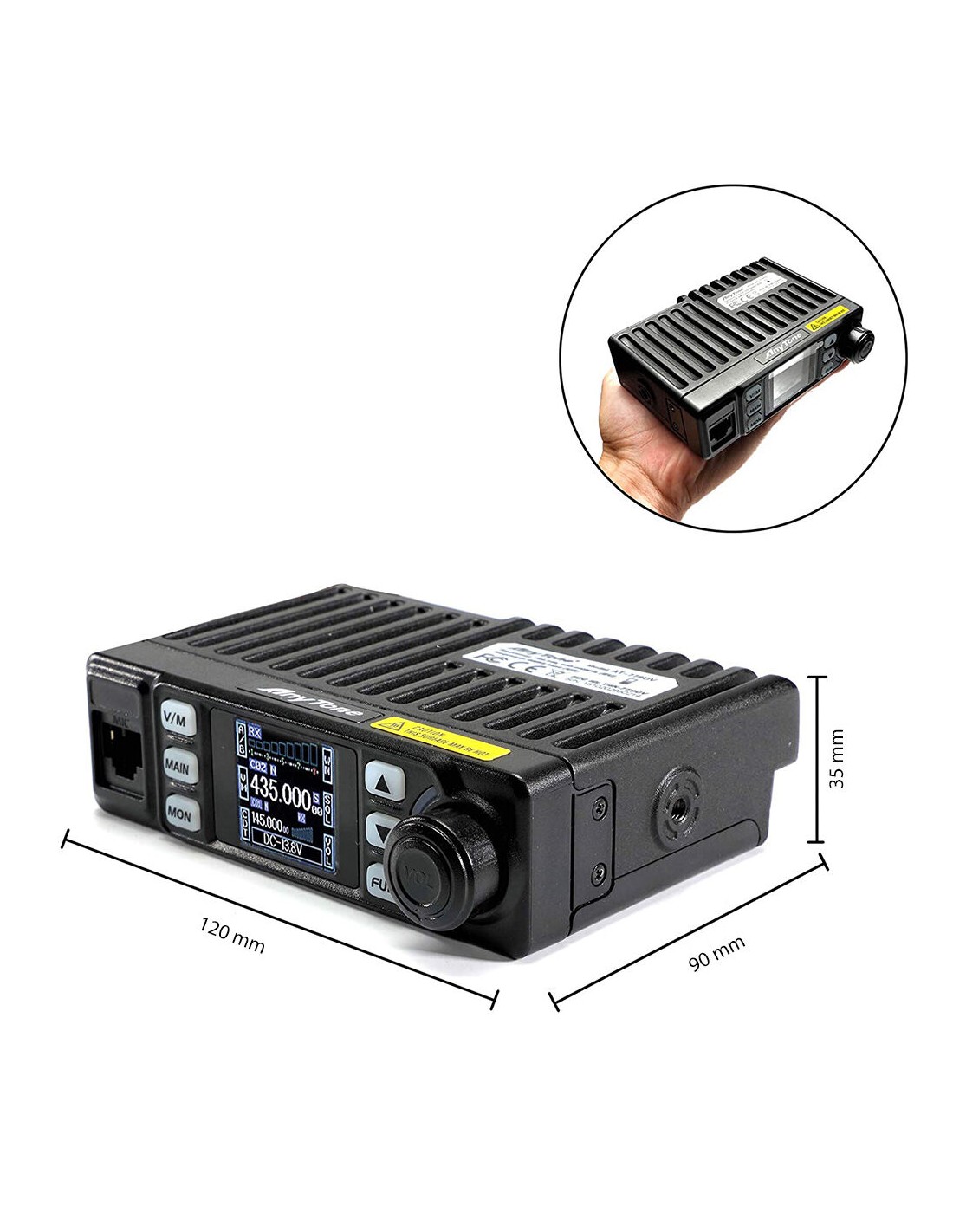

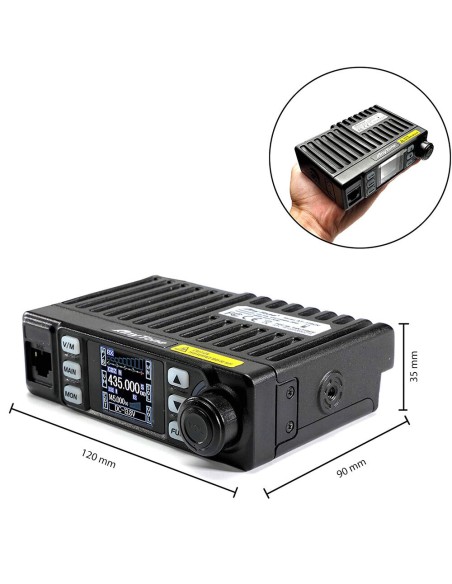

| Dimensions (WxDxH) | 124 (W) x 101(D) x 36 (H)mm | Audio power output | >2W@16Ω | ||||
| Weight | about 0.5Kg | ||||||
