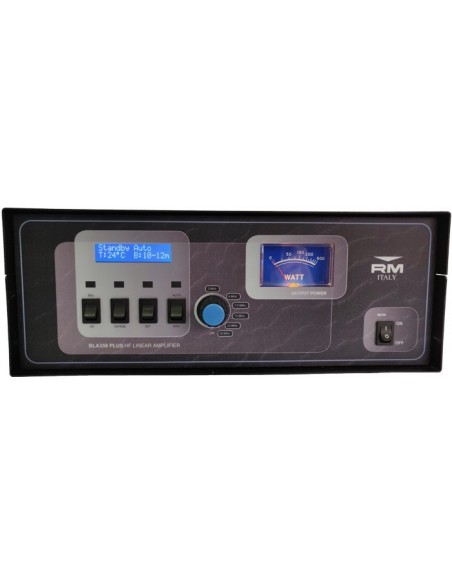

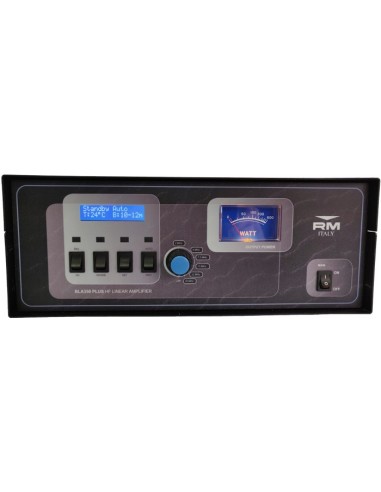

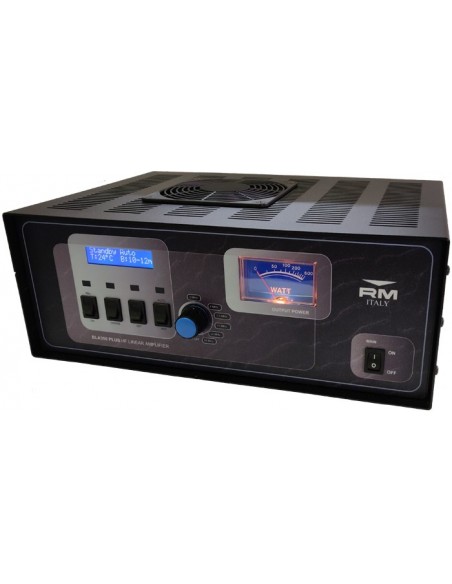

The RM Italy BLA350 Plus is a fully automatic compact 300W HF linear Amplifier, that builds on the success of the previous model. It now features a hardware protection circuit for output impedance mismatch that is lightning fast ensuring the safety of the power transistors in the event of high VSWR on the antenna connector. The RF deck has been improved as have the output band filters. Frequency coverage is from 1.8MHz to 30MHz covering the following bands, 160, 80, 40, 30, 20, 17, 15, 12 and 10m Amateur radio bands. It utilises two 50V MACOM MRF 150 MOSFET Transistors in Push Pull configuration, (Class AB). It may be used on all narrow band modes of transmission e.g. SSB,AM,FM, CW, RTTY, FT8 etc. It fea-tures a dual MCU controlled variable speed cooling system, a large analogue output power meter and a 2 line 16 character LCD display that displays the amplifiers operating parameters, such as frequency, filter selection, temperature and allows quick navigation of the amplifiers menu system. Attention to correct operation and operating the amplifier within its operating capabilities will ensure optimum performance and many years of trouble free use.
1.5-30MHz (160,80,40,30,20,17.15,12 & 10m bands / 60m band with reduced harmonic attenuation)
SSB,CW,AM,FM,Data, (All narrow band modes)
Available in 2 versions 110Vac or 230/240Vac
355 x 155 x 270mm (Width x Height x Depth)
