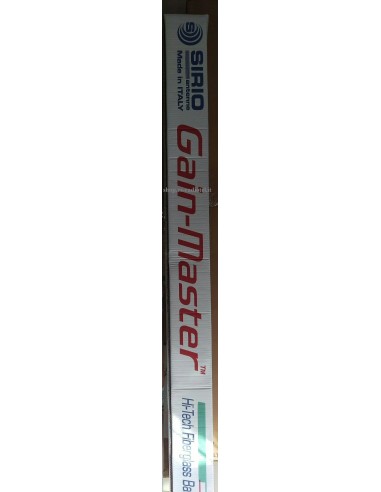

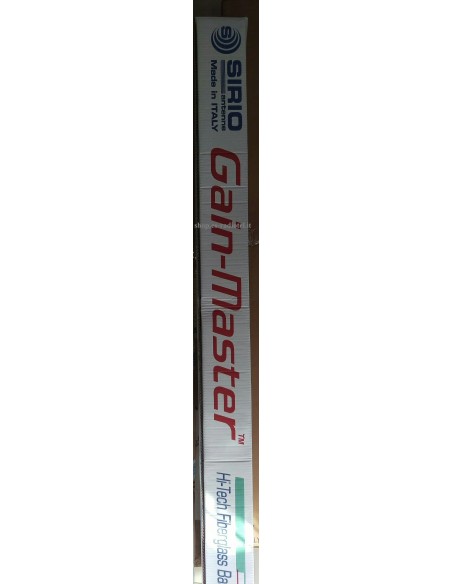

Gain-Master™ is a 0.625λ high tech fiberglass
base station antenna for wide band antenna from 10m to 12m* amateur band
completely designed by electromagnetic simulation to achieve the maximum gain and optimize the radiation pattern and bandwidth.
Engineered with the most advanced available technologies it is completly manufactured in Italy with high quality materials.
The new design of the radiant element (Patent Pending) works like a central feeded dipole so all RF currents on the radiator are in-phase and the ground plane radials are not necessary.
The coaxial coil at the bottom works like RF-choke for the optimum decoupling from mast and feeding line.
Made of telescopic fiberglass tubes, it is DC-grounded for the best protection from static discharges.
Gain-Master™ is the new reference standard in its class of antennas.
*12m band covered with manual or automatic antenna tuner.
Technical Data
ELECTRICAL DATA |
|
Type | 0.625 λ center feeded vertical dipole |
Frequency Range @ SWR ≤ 2.0 | 25.5 - 30 MHz wide band from 10m to 12m* ham band |
Impedance | 50 Ω |
Radiation | Omnidirectional |
Polarization | Linear Vertical |
Max Gain on the horizon | 1 to 2 dB higher than conventional 5/8 λ |
Max Power | 500 Watts (CW) continuous |
Ligthning protection | All metal parts are DC-grounded, the inner conductor shows a DC-short |
Connector | UHF-female, PTFE insulator & gold plated central pin |
MECHANICAL DATA |
|
Materials | Whip made of white fiberglass four sections composite tube, radiator made of copper wire and low loss coax cable, stainless steel hardware, anodized AW6060 aluminium, UV stabilized thermoplastic. |
Wind Resistance | up to 160 Km/h using bracing rods (see Annex installation manual) |
Height (approx.) | 7360mm with bracket, radiator 6850mm |
Packaging Dimensions | 1950 x 100 x 130 mm |
Weight (approx.) | 3 Kg |
Mounting mast | Ø 35-54 mm side mast with “V” bolt |
- Frequency
- 25.5-30 MHz
